1

制品容量Product capacity

0.5-2L

2

每模制品数量
  Quantity of each molded product

2 modulus（模）

3

合模次数
  Number of mold closures

每小时100-300次

100-300 times/hour

4

模板尺寸
  Template size

720*320*50mm

5

最小容模厚度
  Minimum mold thickness

160mm

6

模板最大开距
  Maximum template spacing

400mm

7

最大锁模力
  Maximum locking force

5KN

8

主机螺杆直径
  Main screw diameter

Ф55

38CrMoAl

9

螺杆长径比
  Screw length to diameter ratio

25/1

10

最大塑化能力
  Maximum plasticizing capacity

50kg

11

主电机功率

Main motor power

7.5kw

变频
  frequency conversion

12

加温功率
  Heating power

12kw

13

吹气方式
  Blowing method

上吹气
  Blow air upwards

14

操作系统
  Operating system

触摸屏电脑PLC
  Touch screen computer PLC

 中达优控S700A
  Zhongda Youkong S700A

15

机组总质量
  Total mass of the unit

2.6T

16

外形尺寸（长宽高）
  External dimensions (length, width, height)

2.8m*1.8m*2m

17

耗气量
  Gas consumption

0.5m3/min

18

切料方式
  Cutting method

热切料
  Hot cut material

19

电源
  source

380v(三相四线制)
  Three phase four wire system

20

液压电机
  Hydraulic motor

4kw

21

模头中心距
  Center to center distance of mold head

22

整机加温段
  Whole machine heating section

4段
  4 segments

23

适用材料
  Applicable materials

PE/PP

24

锁模方式
  Locking mode

中心直顶式
  Center straight top type

25

吹气压力
  blowing pressure

0.3-0.6MPA

26

机筒、螺杆材质
  Material of machine barrel and screw

舟山38CoMoAl
  Zhoushan

渗氮处理
  Nitriding treatment

27

变速箱
  Transmission

133（硬齿面）
  Hard tooth surface

 江苏惠鑫
  Jiangsu Huixin

28

气动元件
  Pneumatic components

白石气动
  Baishi Pneumatic

29

电磁阀
  Solenoid valve

BWIN

30

交流接触器电器
  AC contactor electrical appliances

天正
  Tianzheng

31

接近开关

Proximity switch

奥通米克
  Otomic

32

电机
  Electrical machinery

台州格欣
  Taizhou Gexin

33

变频器

inverter

青岛华皓
  Qingdao Huahao

34

模头Die   head

张家港Zhangjiagang

35

风罩

Wind hood

青岛邦凌Qingdao   Bangling

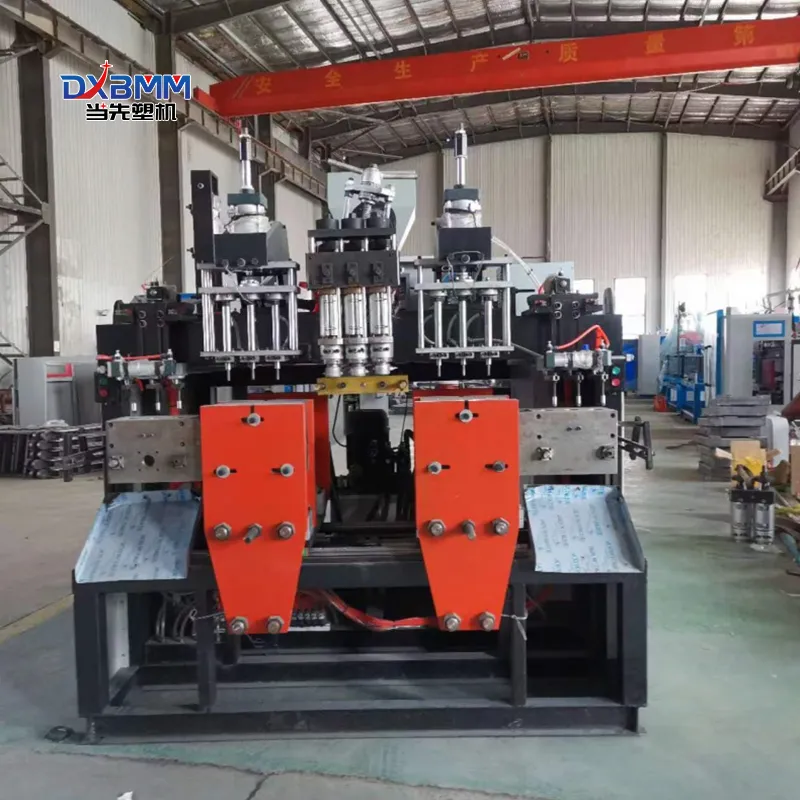

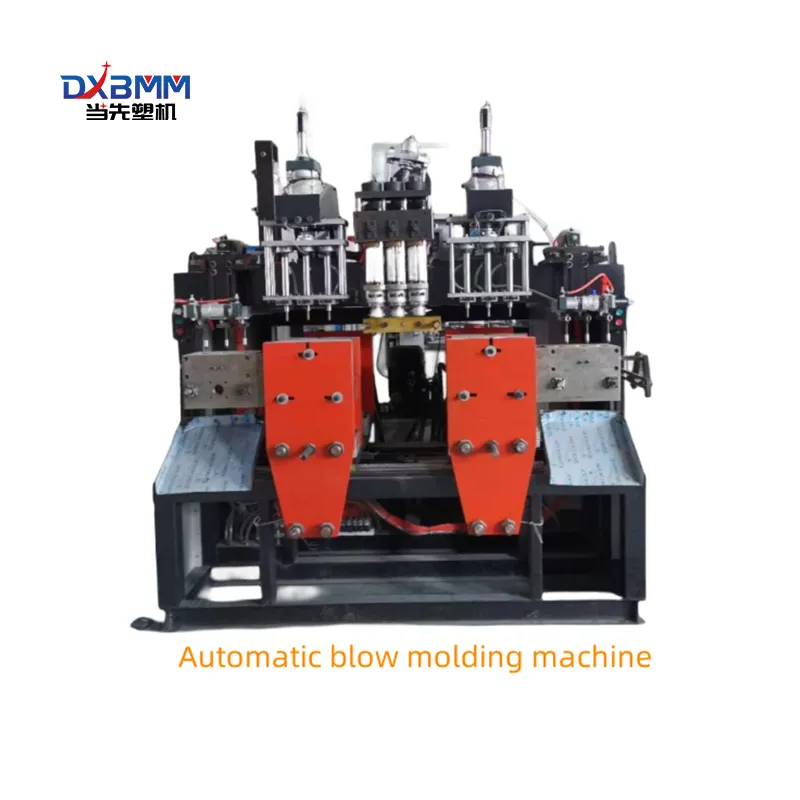

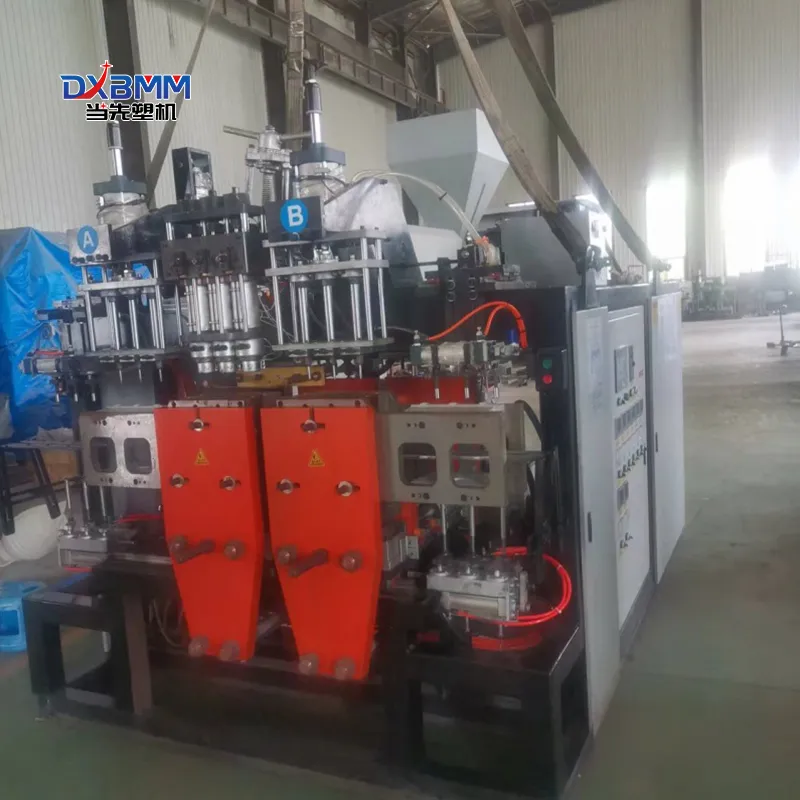

适合医药、玩具、工具盒、日化、汽车、民用桶、化工桶等领域中空塑料制品。原料PP PE
  Suitable for hollow plastic products in fields such as medicine, toys, tool   boxes, daily chemicals, automobiles, civilian buckets, and chemical buckets.   Raw material PP PE
